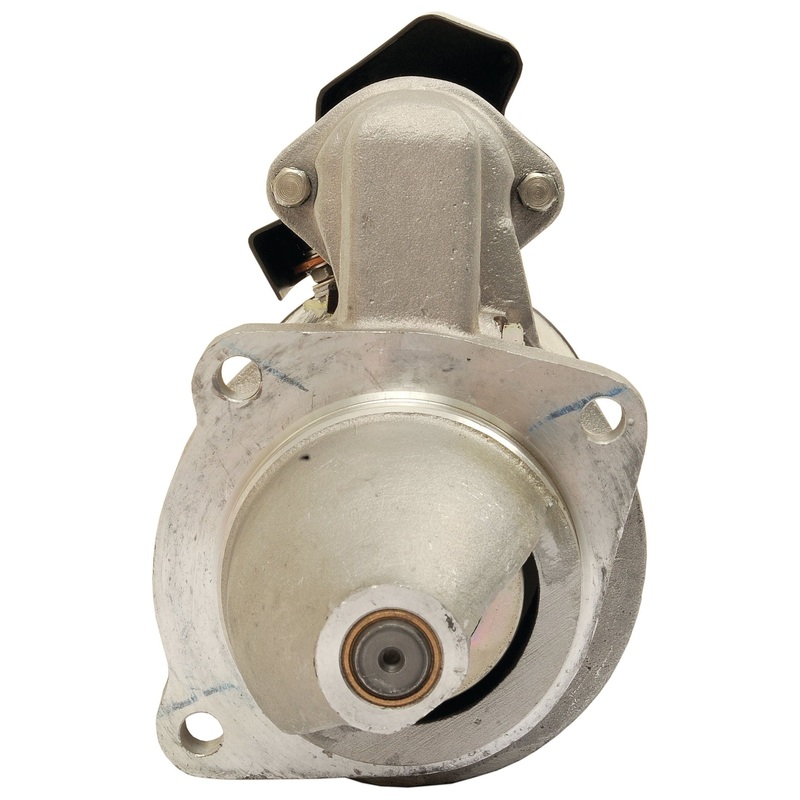

Starter Motor – 12V, 4.2Kw, Gear Reducted (Mahle) | Sparex Part No.S.36208

Starter Motor – 12V, 4.2Kw, Gear Reduced (Mahle) | Sparex Part No. S.36208

Product Specifications

• A (mm): 127
• a Angle (): 45
• B (mm): 89
• Bell Opening: LH
• Brand: Mahle
• C (mm): 51
• D (mm): 41
• Distance Between Teeth (mm): 14.4
• E (mm): 10.9
• Fitting: 3 Hole Flange – LH Opening
• Gear Reduced: Yes
• Height (mm): 152.4
• Kilowatts: 4.2
• Length (mm): 304.8
• Length from Front Mounting Face to Rear (mm): 220
• Mounting Hole (mm): 10.9
• Number of Flange Holes: 3
• Number of Teeth: 11
• Outer Diameter of Battery Terminal (mm): 9.8
• Tariff Code: 8511400090
• Volts: 12V

Suitable For Information

This starter motor is compatible with a variety of models from Case IH / International Harvester, including:

• CS100, CS110, CS120, CS130, CS150, CS68, CS75, CS78, CS86, CS94
• CVX1135, CVX1145, CVX1155, CVX1170, CVX1190, CVX120, CVX130, CVX150, CVX170

Also suitable for Steyr models:

• 9100M, 9105, 9115, 9125, 9145, CVT 120, CVT 130, CVT 150, CVT 170
• CVT 6135, CVT 6145, CVT 6155, CVT 6170, CVT 6190, M9078, M9086, M9094, M968, M975

Compatible with Valmet & Valtra models:

• 255, 355, 365, 455, 465, 504, 505, 565, 604, 605
• 6100, 6200, 6250 HITECH, 6300, 6350 HITECH, 6400, 6550 HITECH, 6600, 665
• 6750, 6750 HITECH, 6800, 6850, 6850 HITECH, 6900, 800, 8000, 805, 8050
• 8100, 8150, 8200, 8400, 8450, 8550, 865, 8750, 8950, 900
• A750L, A85, A85L, A85N, A95, A950, A950F, A990, BC4500, BC4500R
• BH135I, BH165, BH180, BH185I, BH200, BH205I, BH210I, BM100, BM100 PCR, BM110
• BM125I, N101, N101 CLASSIC, N101 HITECH, N103, N103.4 HITECH, N111, N111C
• N111E, N111ELS, N111H, N113, N121 HITECH, N121LS, N123 HITECH 3, N123 VERSU
• N141 HITECH, N141LS, N143 HITECH 3, N143 VERSU, N143D, N163 VERSU, N163D
• N82, N91, N91C, N91H, N92, N93, S233, S260, S263, S280, S293, S323, S353
• T121, T131, T133H, T151, T153, T153 HITECH, T153 VERSU, T161, T163E
• T163ED, T163EV, T173 HITECH, T183 VERSU, T191, T193, T203D, T213 VERSU, X120

Manufacturer Information

This starter motor is manufactured by AGCO and is compatible with the following OEM part numbers:

• AGCO: 836873088, D45070088, V836873457, 836873457, 569018D1, V836866817
• Bosch: 986013690, 986013691, 0001260025, 1367032, 1359124, 1260025, 1260026, 1367067
• Case IH / International Harvester: 142000090700, 162000090722, 132000090705, 132000090740, 84284540, 47111575
• Ford / New Holland: 87751000, 87693781
• Iskra: IS0897, IS0836
• Lester: 18480
• Lucas: LRS00926, LRS00147, LRS02361, 26342, 26284, LRS147
• Steyr: 162000090722
• Valmet & Valtra: 835331592, 836640949, 836866817, 836640940, 89732200, 836662073, 836673290
