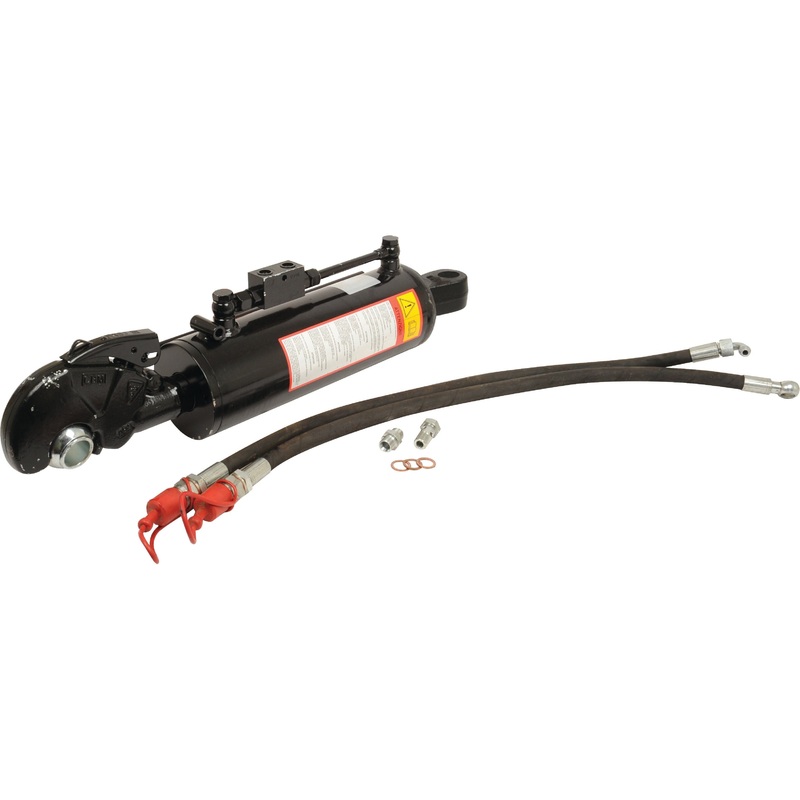

Hydraulic Top Link (Cat.-/3) with Q.R CBM Hook – Sparex Part No. S.32932

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this hydraulic linkage features a minimum length of 630mm and a maximum length of 895mm. It is supplied with a comprehensive hose set, chain & ball, and a marker label (without knuckle & pin) for easy installation and operation.

Product Specifications

• Alternative to: 399731, 399732, 399733, 399734
• Brand: Sparex
• Category Implement End: 3
• Check Valve Position: Top
• Cylinder Bore: 90mm
• Implement End: Q.R CBM Hook
• Lift Capacity @ 180 bar: 8770 kg
• Maximum Length: 895mm
• Minimum Length: 630mm
• Rod Diameter: 45mm
• Suitable for Tractors up to: 200hp (147kW)
• Thrust @ 180 bar: 11700 kg
• Tariff Code: 8412212090
• Related Products: 10287, 10288, 10289, 10290, 10292, 32257, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197

Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring versatility across various applications.
