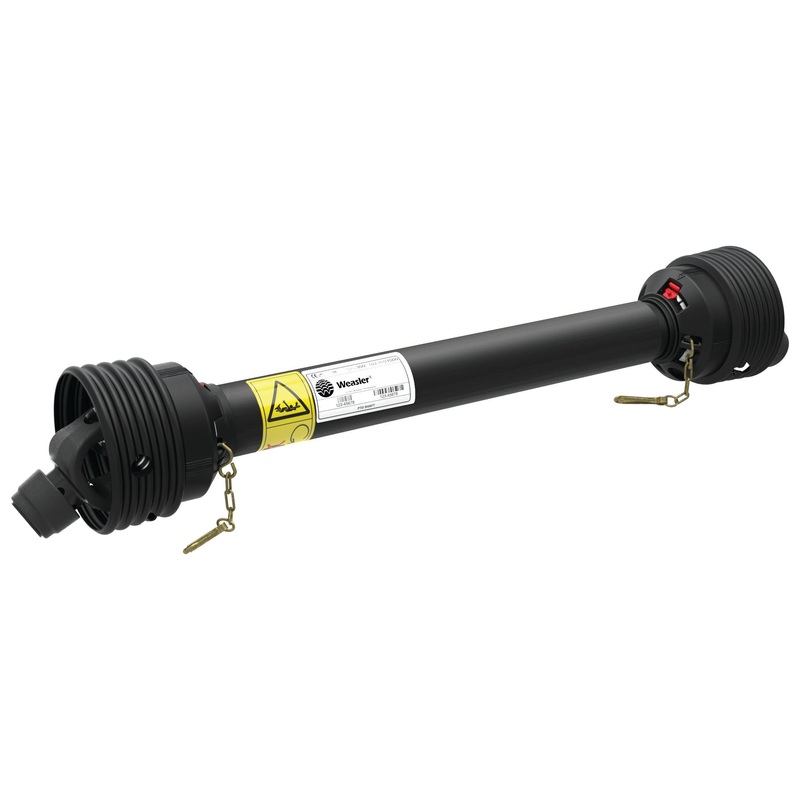

Sale! Sparex PTO Shaft – (Lz) Length: 1210mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.164296
$84.30
$281.00
Quick Overview
Sparex PTO Shaft - (Lz) Length: 1210mmIntroducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1210mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x
- Satisfaction 100% Guaranteed
- Free shipping on orders over $30
- 60 day easy Return
Sparex PTO Shaft – (Lz) Length: 1210mm
Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1210mm and connects with a 1 3/8” x 6 Spline Q.R. at the tractor end and a 1 3/8” x 6 Spline Shear Bolt Limiter at the implement end.
Key Specifications:
- Brand: Sparex
- Clutch Setting: 1600 Nm
- HP Rating @ 540RPM: 47 HP (up to 54 HP)
- Kilowatt Power Rating @ 540RPM: 35 kW
- Torque: 335 – 1240 Nm (620 Nm nominal)
- Total Closed Length: 1432 mm
- Tube Profile: Triangle
- Universal Joint Dimensions: 30.2 x 79.4 mm
- Shearbolt Clutch Bolt Diameter: 8 mm
- Shearbolt Clutch Radius: 55 mm
- Italian Series: AB5/A5
- PTO Series: AB5/A5
- Tube Reference: 12509/12510
- Tariff Code: 8483908990
Compatibility:
This PTO shaft serves as an alternative to part numbers 128692 and 128717. It is compatible with various implements and is designed to meet the needs of agricultural machinery.
Related Products:
- 163813
- 166692
- 166693
Upgrade your machinery with the reliable and efficient Sparex PTO Shaft today!
